Ornamental Pipes

Ornamental Pipe

By Alumtan Union Metal Sdn Bhd
(ucas’s partner)

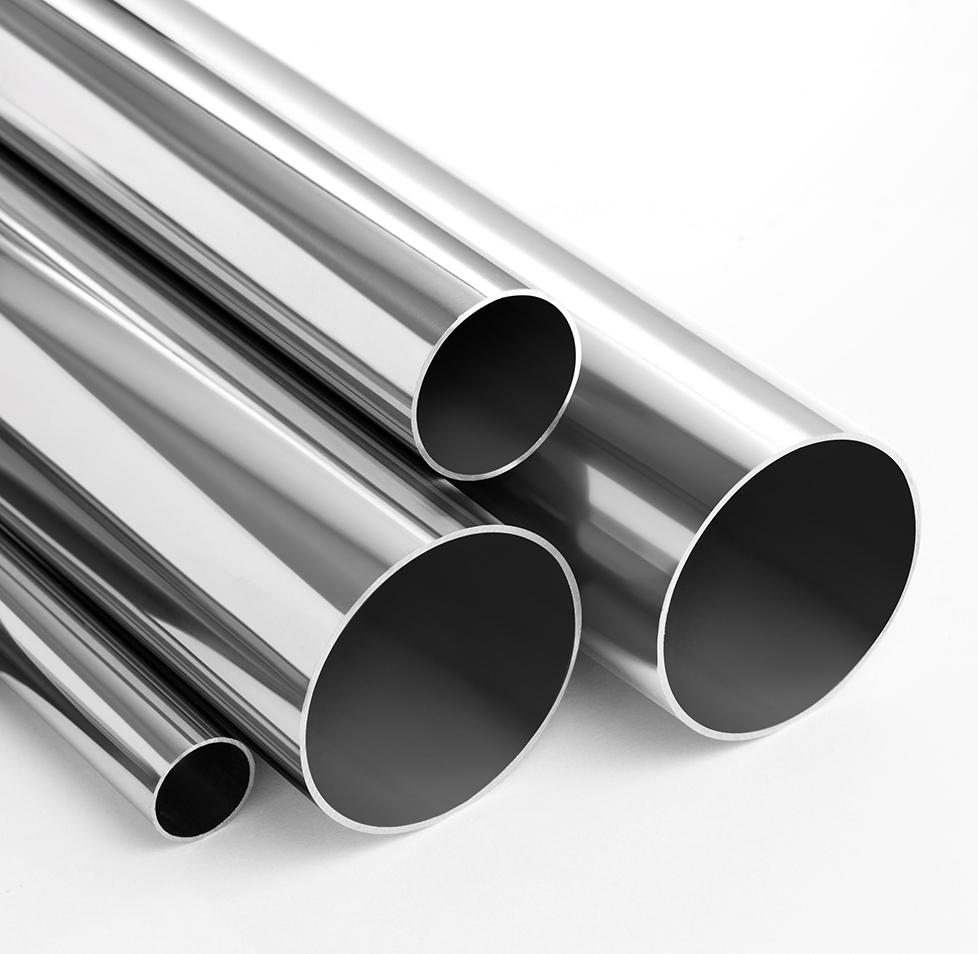

1. ROUND TUBES - Material Grade: AISI 304/ 316L/439 Surface Finish: 4B/HL/BA Standard Length: 6.1M/6.0M
Outer Diameter (OD)		Thickness (MM)
Inch	MM	0.8	1.0	1.2	1.5	2.0	3.0
3/8"	9.5		✓	✓
1/2"	12.7	✓	✓	✓	✓
5/8"	15.9	✓	✓	✓	✓
3/4"	19.1	✓	✓	✓	✓
7/8"	22.2	✓	✓	✓	✓
1"	25.4	✓	✓	✓	✓	✓	✓
1 1/4"	31.8		✓	✓	✓	✓	✓
1 1 /2"	38.1		✓	✓	✓	✓	✓
1 3/4"	44.5			✓	✓
2"	50.8		✓	✓	✓	✓	✓
2 1/2"	63.5		✓	✓	✓	✓	✓
3"	76.2			✓	✓	✓	✓
3 1/2'	88.9				✓
4"	101.6			✓	✓	✓	✓

1. ROUND TUBES - Material Grade: AISI 304/ 316L/439 Surface Finish: 4B/HL/BA Standard Length: 6.1M/6.0M
Outer Diameter (OD)		Thickness (MM)
Inch	MM	0.8	1.0	1.2
3/8"	9.5		✓	✓
1/2"	12.7	✓	✓	✓
5/8"	15.9	✓	✓	✓
3/4"	19.1	✓	✓	✓
7/8"	22.2	✓	✓	✓
1"	25.4	✓	✓	✓
1 1/4"	31.8		✓	✓
1 1 /2"	38.1		✓	✓
1 3/4"	44.5			✓
2"	50.8		✓	✓
2 1/2"	63.5		✓	✓
3"	76.2			✓
3 1/2'	88.9
4"	101.6			✓

1. ROUND TUBES - Material Grade: AISI 304/ 316L/439 Surface Finish: 4B/HL/BA Standard Length: 6.1M/6.0M
Outer Diameter (OD)		Thickness (MM)
Inch	MM	1.5	2.0	3.0
3/8"	9.5
1/2"	12.7	✓
5/8"	15.9	✓
3/4"	19.1	✓
7/8"	22.2	✓
1"	25.4	✓	✓	✓
1 1/4"	31.8	✓	✓	✓
1 1 /2"	38.1	✓	✓	✓
1 3/4"	44.5	✓
2"	50.8	✓	✓	✓
2 1/2"	63.5	✓	✓	✓
3"	76.2	✓	✓	✓
3 1/2'	88.9	✓
4"	101.6	✓	✓	✓

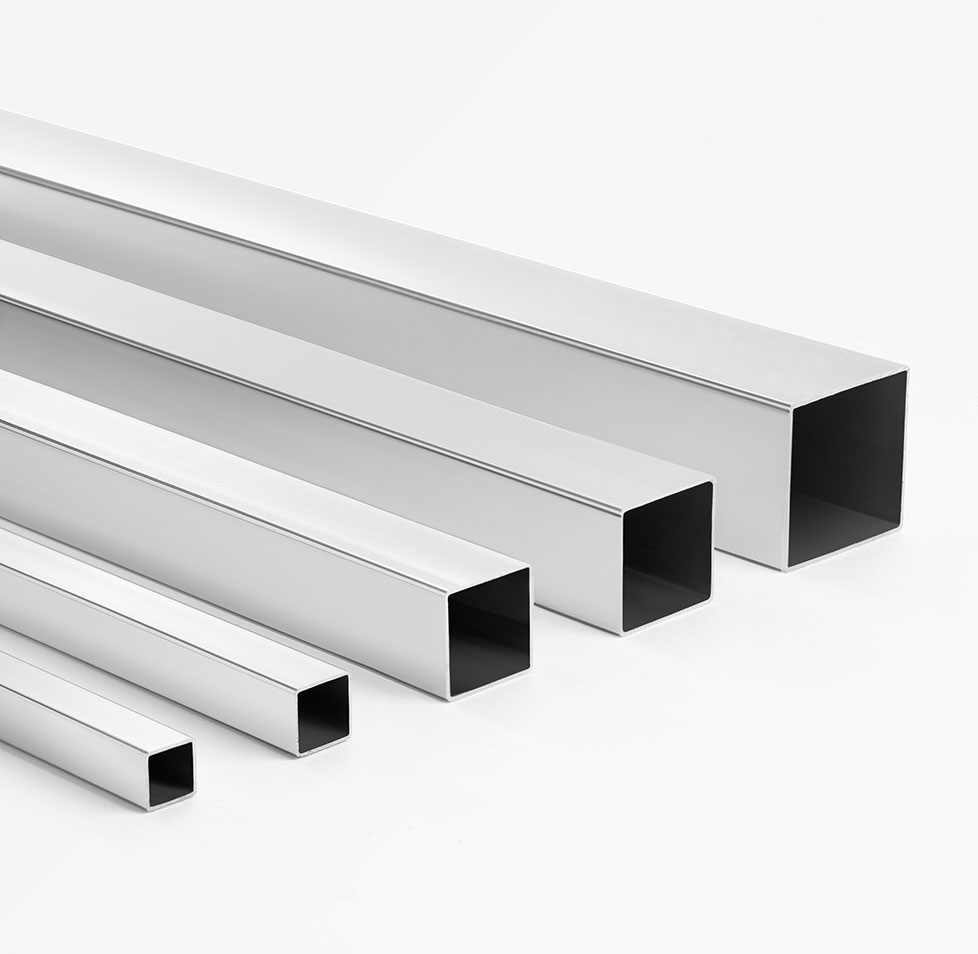

2. SQUARE TUBES - Material Grade: AISI 304/ 316L/439 Surface Finish: 4B/HL/BA Standard Length: 6.1M/6.0M
Dimension		Thickness (MM)
Inch	MM	0.8	1.0	1.2	1.5	2.0	3.0
1/2"	12.7	✓	✓	✓	✓
5/8"	15.9	✓	✓	✓	✓
3/4"	19.1	✓	✓	✓	✓
7/8"	22.2		✓	✓
1"	25.4	✓	✓	✓	✓	✓
1 1/4"	31.8		✓	✓	✓	✓
1 1 /2"	38.1		✓	✓	✓	✓	✓
2"	50.8		✓	✓	✓	✓	✓
3"	76.2			✓	✓	✓	✓

2. SQUARE TUBES - Material Grade: AISI 304/ 316L/439 Surface Finish: 4B/HL/BA Standard Length: 6.1M/6.0M
Dimension		Thickness (MM)
Inch	MM	0.8	1.0	1.2
1/2"	12.7	✓	✓	✓
5/8"	15.9	✓	✓	✓
3/4"	19.1	✓	✓	✓
7/8"	22.2		✓	✓
1"	25.4	✓	✓	✓
1 1/4"	31.8		✓	✓
1 1 /2"	38.1		✓	✓
2"	50.8		✓	✓
3"	76.2			✓

2. SQUARE TUBES - Material Grade: AISI 304/ 316L/439 Surface Finish: 4B/HL/BA Standard Length: 6.1M/6.0M
Dimension		Thickness (MM)
Inch	MM	1.5	2.0	3.0
1/2"	12.7	✓
5/8"	15.9	✓
3/4"	19.1	✓
7/8"	22.2
1"	25.4	✓	✓
1 1/4"	31.8	✓	✓
1 1 /2"	38.1	✓	✓	✓
2"	50.8	✓	✓	✓
3"	76.2	✓	✓	✓

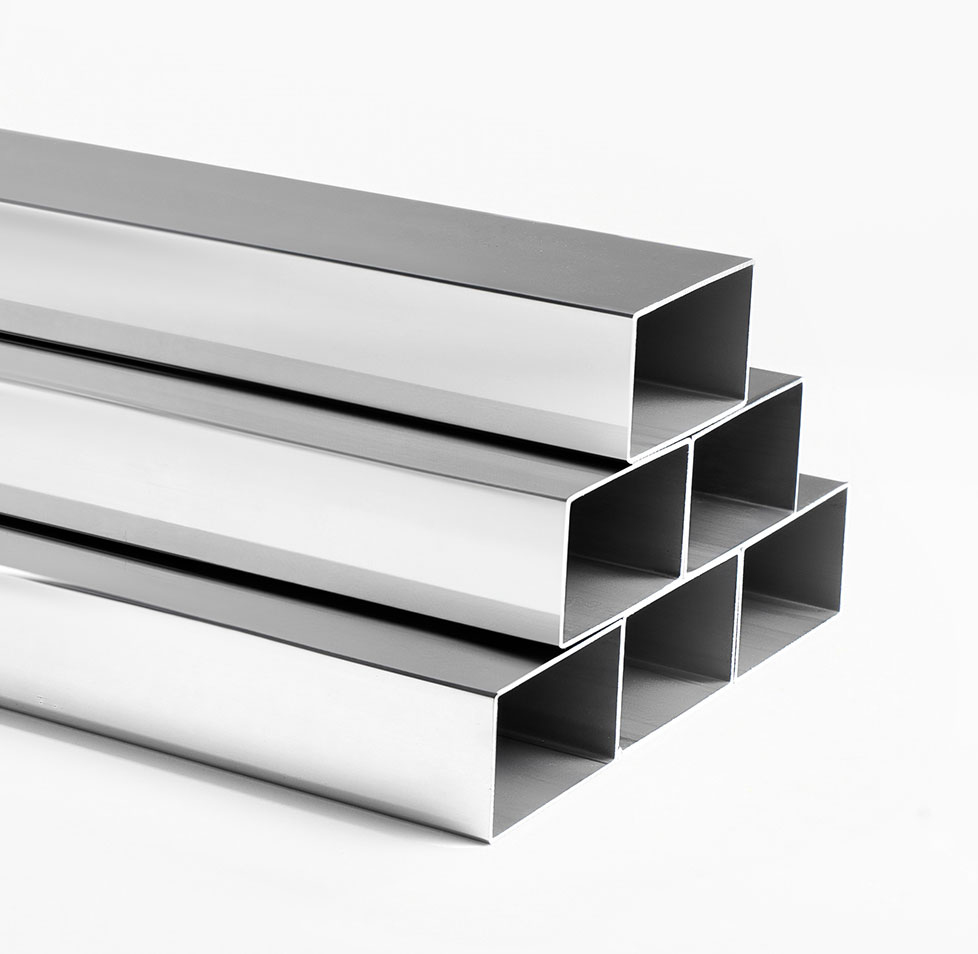

3. RECTANGLE TUBES - Material Grade: AISI 304/ 316L/439 Surface Finish: 4B/HL/BA Standard Length: 6.1M/6.0M
Dimension		Thickness (MM)
Inch	MM	0.8	1.0	1.2	1.5	2.0	3.0
3/8" *3/4"	9.5 x 19.1		✓	✓
	10 x 30		✓		✓
	15 x 30	✓
1/2" x l"	12.7 x 25.4	✓	✓	✓
3/4 " x l l/2"	19.1 x 38.1		✓	✓	✓
l" x 2"	25.4 x 50.8		✓	✓	✓	✓
l " x 3"	25.4 x 76.2			✓	✓	✓
1 3/4" * 3"	45 x 75			✓	✓	✓	✓
2" x 4"	50.8 x 101.6				✓	✓	✓

3. RECTANGLE TUBES - Material Grade: AISI 304/ 316L/439 Surface Finish: 4B/HL/BA Standard Length: 6.1M/6.0M
Dimension		Thickness (MM)
Inch	MM	0.8	1.0	1.2
3/8" *3/4"	9.5 x 19.1		✓	✓
	10 x 30		✓
	15 x 30	✓
1/2" x l"	12.7 x 25.4	✓	✓	✓
3/4 " x l l/2"	19.1 x 38.1		✓	✓
l" x 2"	25.4 x 50.8		✓	✓
l " x 3"	25.4 x 76.2			✓
1 3/4" * 3"	45 x 75			✓
2" x 4"	50.8 x 101.6

3. RECTANGLE TUBES - Material Grade: AISI 304/ 316L/439 Surface Finish: 4B/HL/BA Standard Length: 6.1M/6.0M
Dimension		Thickness (MM)
Inch	MM	1.5	2.0	3.0
3/8" *3/4"	9.5 x 19.1
	10 x 30	✓
	15 x 30
1/2" x l"	12.7 x 25.4
3/4 " x l l/2"	19.1 x 38.1	✓
l" x 2"	25.4 x 50.8	✓	✓
l " x 3"	25.4 x 76.2	✓	✓
1 3/4" * 3"	45 x 75	✓	✓	✓
2" x 4"	50.8 x 101.6	✓	✓	✓
